1、Applicable cable outer diameter: 1‑130 mm. Select the corresponding model according to outer diameter；
2、Length per meter: 1000±0.1 mm, stable without offset；
3、Line speed up to 2500 m/min；
4、Accept MES work orders for automatic production as per work orders；
5、Realize interconnection with extruders, labeling machines and take‑up machines on the production line for automatic production；
6、Open software source code with full‑free services；
1. Used for cables with an outer diameter of 10~130mm, select the corresponding model according to the outer diameter;
2. It can be used independently or connected to a T2BI digital intelligent printer, keeping 1000 ± 0.1mm of each meter-length unchanging without manual correction;
3. Linespeed can reach 2500 mpm;
4. Accept MES work orders and automatically produce according to the work orders;
5. Can interconnect extruders, labeling machines, and closing machines on the production line for automated production;
6. Free software service;
Production lines with line speed ＜880 mpm are mainly used for solid‑fill marking on lines below 30 mpm, and single‑/dual‑line marking on lines below 420 mpm
| Laser Type | Fiber Laser | CO₂ Laser | 266/355/532 nm Laser |
| Applicable Materials | Black‑sheath cables including PE, PVC, LSZH, irradiated materials, fluoroplastic, photovoltaic cables and metallic fire‑resistant cables | All‑color PVC, rubber, TPE, etc.; partial‑color silicone rubber, fluoroplastic, LSZH, etc. | Multi‑color cables of PVC, TPE, PE, TPU, LSZH, Teflon, irradiated materials, etc. (except transparent) (most colors and materials) |
| Minimum Marking Character Height (mm) | 0.5 | 0.8 | 0.4 |
| Meter Counting Accuracy | 0.02% | ||
| Maximum Line Speed (Single‑wire) (m/min) | 60‑310 mpm (up to 800 mpm for meter‑mark only) | ||
| Nozzle Orientation | Dual‑axis 360° adjustable | ||
| Communication Interface | RS232, USB, Ethernet port, etc. | ||
MES Integration | √ | ||
| Informatization Services & Customization | √ | ||
| Address Tracking (Optional) | Real‑time recording and uploading of GPS information | ||
| Production Monitoring (Optional) | Real‑time recording and uploading of online production‑status videos | ||
| Marking Authorization (Optional) | Upload and match equipment serial numbers, assign designated production factories | ||
| S系列 | |||
 |  |  |  |
| F系列 | |||
 |  |  |  |
| C系列 | |||
 |  |  |  |

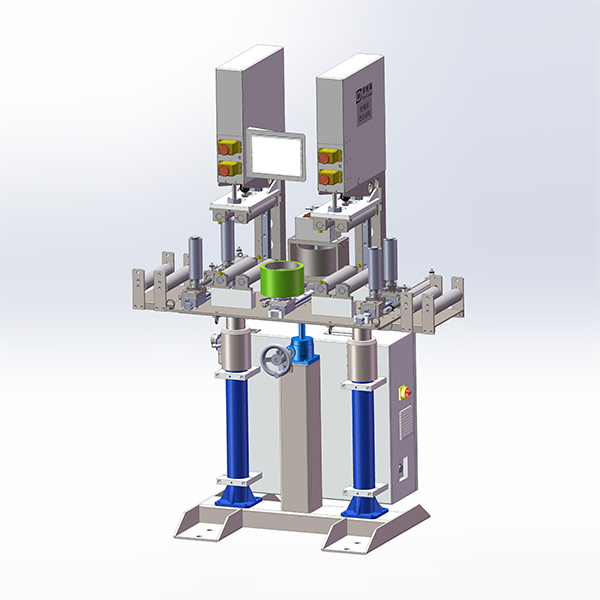

SPM01 Meter CounterSPM01，Unchanging meter length,、linespeed＞1000mpm、MES link、Device interconnection、Free software service,

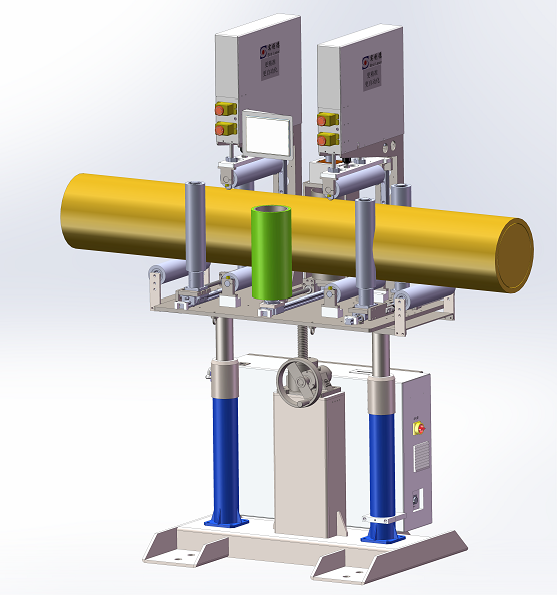

SPM03 Meter CounterSPM03，Unchanging meter length,、linespeed＞1000mpm、MES link、Device interconnection、Free software service,
